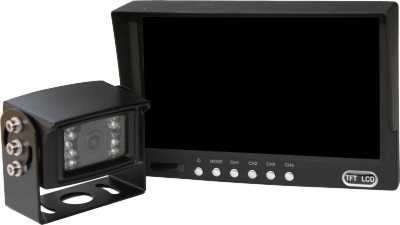

Comprehensive SPLIT SCREEN system with a 7″ wide screen LCD COLOUR monitor. Systems can be supplied with 1, 2, 3 or 4 cameras all with night vision capability. Each camera is supplied with a 20m cable. System includes two cameras as standard.
MONITOR
- 7″ wide screen LCD monitor
- 16:9 widescreen display
- 12-24V operating voltage
- 4 camera inputs
- High resolution pictures
- Adjustable between full image / dual image / quad image on screen
- Automatic camera switching facility
- Brightness, contrast, colour and volume adjustment
- Sun shield
- Built in speaker
-
Suitable for side & rear view cameras
Technical Data
– Audio output: 1W
– Power consumption: approx. 10W
– 4 AV input
– Dot pitch: 0.321(W) 0.372(H)
– Resolution: 1440 x 234 dots
– Four pin din connector
– PAL / NTSC switching
– Contrast ratio: 250:1
– Brightness: 450cd/m²
– Viewing angle: U:30, D:60, R/l:60
– Operating temperature: -30ºC to 60ºC, RH90%CAMERA
- Aluminum weatherproof housing
- Wide angle optics
- High resolution with 250,000 pixels
-
Electronic brightness adjustment
Technical Data
– Dimensions B/H/D: 75 x 59 x 55 mm
– Operating voltage: DC 12 volts
– Power consumption: DC 12 volts 2W
– Picture sensor: 1/3” CCD sensor
– Resolution: > 420 horizontal lines
– Light sensitivity: 0 lux
– Operating temperature: -20°C to 70°C
– Horizontal viewing angle: approx. 120°
